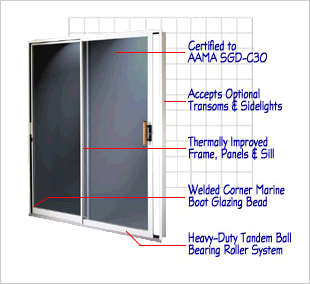

DYC PolyPour PATIO DOOR SYSTEM
Series M1500
Don Young offers one of the best-designed
thermally broken aluminum patio doors available anywhere.
A wide variety of glass options are available, and
we offer these doors both in standard stock sizes and
on a custom-built, made-to-order basis in White, Tan, and Bronze.
Series 1500 sliding glass doors are made from strong, durable,
maintenance free aluminum, featuring our ployurethane Thermal Barrier. The barrier separates the
interior and exterior surfaces, dramatically reducing heat loss in the winter and heat gain in the
summer.
Standard Features
- Reversible door panels for either XO or OX operation
- Interlocking meeting rails
- High-density pile weatherstripping with mylar fin to seal out wind and water.
- Sloped anodized sill to promote water runoff
- 7/8-in. insulated glass for optimum thermal efficiency
- Extruded aluminum sliding screen with fiberglass mesh
- White, Tan, or Bronze powder coat colors
- Integral Thermal Barrier throughout frame and sash
Available Options
- Nailing fin/Flush fin
- Custom sizes
- Divided lites
- Low-E glass
- Tinted glass
- Aluminum screen mesh
- Keyed locks
|
Test |
Size |
Air
ASTM E 283-91 |
Water |
Structural Pressure
ASTM E 330-90 |
Rating |
Series
M1510 |
AAMA/NWWDA
101/I.5.2-97 |
144" X 82" |
0.14 cfm/ft @1.57psf |
3.75PSF |
22.5 PSF +/- |
C-25 |
|
366 LoE³ / Argon
|
U-factor |
SHGC |
Series M1500 |
.38 |
.21 |
|
